Design & Functionality:
Image Display:
- Panel Manufacturer: Hisense
- Panel Mode: LCM: JHD396X1F01-TXL2, Open Cell: V400HJ9-9E1(C4)
- Active display area, horizontal, dimension (mm): 878.112
- Active display area, vertical dimension (mm): 485.352
- Screen size (rounded to nearest integer)(cm): 100
- Screen Size (rounded to nearest integer)(inch): 40
- Display technology: LCD/LED lit
- Backlight source: Direct LED
- Resolution (Horiz x Vert)(pixel): 1920*1080
- Screen curvature radios (mm): –
- Colour depth (bit): 8bit
- Image refresh frequency (Hz): 60
- Smooth motion rate: 60
- 3D image: –
- Typical brightness of white (cd/m2): 250
- Native contrast ratio: 5000:1
- Viewing Angle (Horiz / Vert)(Degrees): 178 / 178
- Quantum dot: No
- Wide colour gamut: No
- KSF phosphor: No
- UHD Premium: No
- Response Time (ms): 9.5

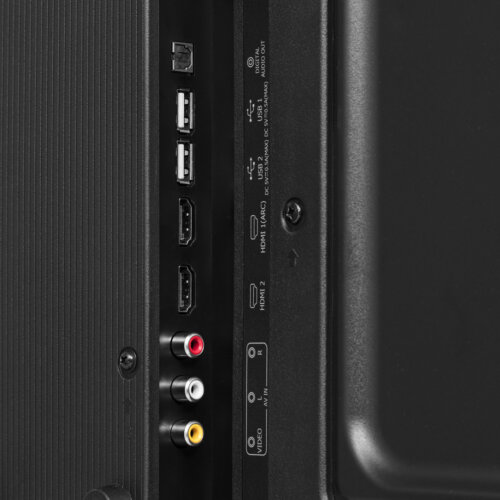

- RF – Radio frequency input: 1
- AV input: 1
- AV output: 0
- USB interface type 3.0 (QTY / List….): 0
- USB Interface type 2.0 (QTY / List ….): 2/ USB1, USB2
- Optical digital audio output (SPDIF): 1
- Earphone jack: 1
- HDMI inputs: 2
- HDMI type 8k@60Hz: No
- HDMI type 4k@60Hz with HDCP version 2.2: No
- HDMI 2.1 complaint input: No
- Enhanced Audio Return Channel (eARC): No
- CEC – Consumer Electronics Control via HDMI: Yes
- Ethernet port (RJ45 connector): 1
- Wi-Fi protocols IEEE 802.11 (b, g, n, ac, ad, ..): b,g,n
- Wi-Fi bands (GHz): 2.4
- DLNA compliance: Yes
- Bluetooth / BT version: No / No
- Anyview (Screen mirroring): Yes
- Catch-up TV services: Iview, SBS on Demand, 7 Plus, 9 Jumpin (Tenplay available from playstore)
- UHD (4k) Streaming: No
- Installed Applications (List ….): Netflix/Youtube/Prime Video/ Foxtel/Stan/ABC iview/Kayo/Tubi/SBS ON DEMAND/Facebook Watch/NBA
- Freeview Plus – HbbTV 2.0: Yes
- Web browser /Chrome /Opera / Other): Odin
- Television system (DVB-T / DVB-T2): Yes / Yes
- Video decoder (MPEG2 / MPEG4): Yes / Yes
- AC3 Surround sound decoder: Yes
- AS 4599.1 compliance: Yes
- AS 4933.1 compliance: Yes
- LCN – Logical channel number and DTV Service name support: Yes
- Teletext / Teletext signal interruption (TAB compliant) / 16:9 TLTX: Yes / Yes / Yes
- Subtitles: Yes
- RF Signal strength indicator: Yes
- RF Signal quality indicator: Yes
- RF Bit error rate indicator: Yes
- EPG – Electronic programming guide, 7 days for all services: Yes
- Audio description (vision impairment aid): Yes
- Parental rating lock: Yes
- Colour-Sound systems in VHF band: PALSECAM, B/G, D/K, I
- Colour-Sound systems in UHF band: PALSECAM, B/G, D/K, I
- Stereo sound decoder (A2, Nicam, ….): No
- Teletext / Teletext signal interruption (TAB complaint) /16: No / No / No
- Subtitles: Yes
- Backlight control: No
- Light sensing: No
- Dynamic backlight control: No
- Frame rate control: No
- Variable Refresh Rate (VRR): No
- FreeSync: No
- Auto Low Latency Mode for VRR: No
- Local dimming / controllable zones: No
- Zoom function settings: Automatic / 16:9/ 4:3/ Panoramic / Movie Zone / Direct
- 1:1 Pixel mapping: No
- HDR – High Dynamic Range for luminance (DMP / NETFLIX / HDMI): No/No/No
- HDR system (HDR10 / HDR10+ / Dolby Vision: No / No / No
- HLG (Hybrid Log-Gamma) for HDR: No
- HEVC (H.265) decoder: No
- Dual image (PIP / POP): No/No
- Motion enhancement and compensation (MEMC): No
- Input lag: No
- Audio power output per channel (Watt): 7
- Number of speakers (Tweeter / Midrange / Woofer): 2/0/0
- Automatic volume level (AVL): Yes
- Audio equalizer: Yes
- Dolby Digital: Yes
- Audio enhancement – Type (SRS, BBE, SAP, DBX-TV ….): DTS Virtual X
- Lip-sync adjustment: Yes
- On/Off Timer: Yes
- Power off if no signal: Yes
- Sleep Timer: Yes
- Program Lock: Yes
- OSD transparency control: Yes
- User interface: VIDAA U5
- Software version OSD indication: Yes
- Legal requirements: Disclaimer / Acceptance of Terms: Yes / Yes
- Favorite channel list: Yes
- Electronic point of sales (E-POS): Yes
- OTA – Over-the-air software updates: Yes
- Voice command: No
- Screen mirroring (Miracast, Anyview Cast, …): Anyview Cast
- Smartphone remote control application (Rremote Now,…): Yes
- Replaceable demo video for Store mode: Yes
- Remote control via serial port: No
- Personal Video Recorder: Yes
- Time Shift: Yes
- DTV Recording (EPG scheduling/start from Standby): Yes / Yes
- DivX decoder: No
- MPEG4 (H.264 / H.265 decoder): Yes / Yes
- DMP – Digital media player content (Music / Video / Photos / Text): Yes / Yes/Yes/No
- DMP Auto-play: No
- DMP for UHD content via USB: Yes
- DMP File allocation table (FAT/FAT32/exFAT/NTFS): Yes / Yes / No / Yes
- PVR File allocation table (FAT/FAT32/exFAT/NTFS): Yes / Yes / No / Yes
- Protected Hotel Lock Submenu (Password/fixed code): No / Yes
- Clone function for programs, sound, and image settings: Yes
- Sub-menu lock, including tuning lock: Yes
- Keyboard lock: Yes
- Maximum volume lock: Yes
- Power on volume: Yes
- Power on, and apply default sound/image settings: No
- Power on source selection: Yes
- Power on RF channel selection: Yes
- Power on mode (On / Standby / Last): Yes / Yes / Yes
- Inputs access (Enable / Disable): Yes
- Processor / Cores: MT9602GAATBB / 4
- Dual Tuner: No
- Colour (Front bezel, rear, stand): Black / Black / Black
- Speaker mounted in enclosure: Yes
- Mains power switch: No
- Swivel base: No
- Compact packaging: Yes
- Supply range (Voltage / Frequency)Volt / Hz: 100 ∼ 240V / 50Hz
- Standby consumption (Watt): ‹0.5W
- Maximum time delay Power On to sound an image (sec): 30
- Remote controller (Technology / Part Number): IR/EN2B36H
- Battery (size/quantity): AAA / 2
- User manual (Available online / Quick setup guide (Print): 1 / 1
- Warranty (In User manual / In separate sheet): In separate sheet
- Skype camera (QTY / Part Number): –
